Extension Cable, ECG Vivid I to Mac LabCath Lab, 600mm

2032673-001
ECG de diagnóstico
Otro ECG de diagnóstico
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Good Conductivity
  • Easy To Connect Connectors At Both Ends
  • EMI/RFI Interference Shielding
  • Reliable Operation

Descripción del producto

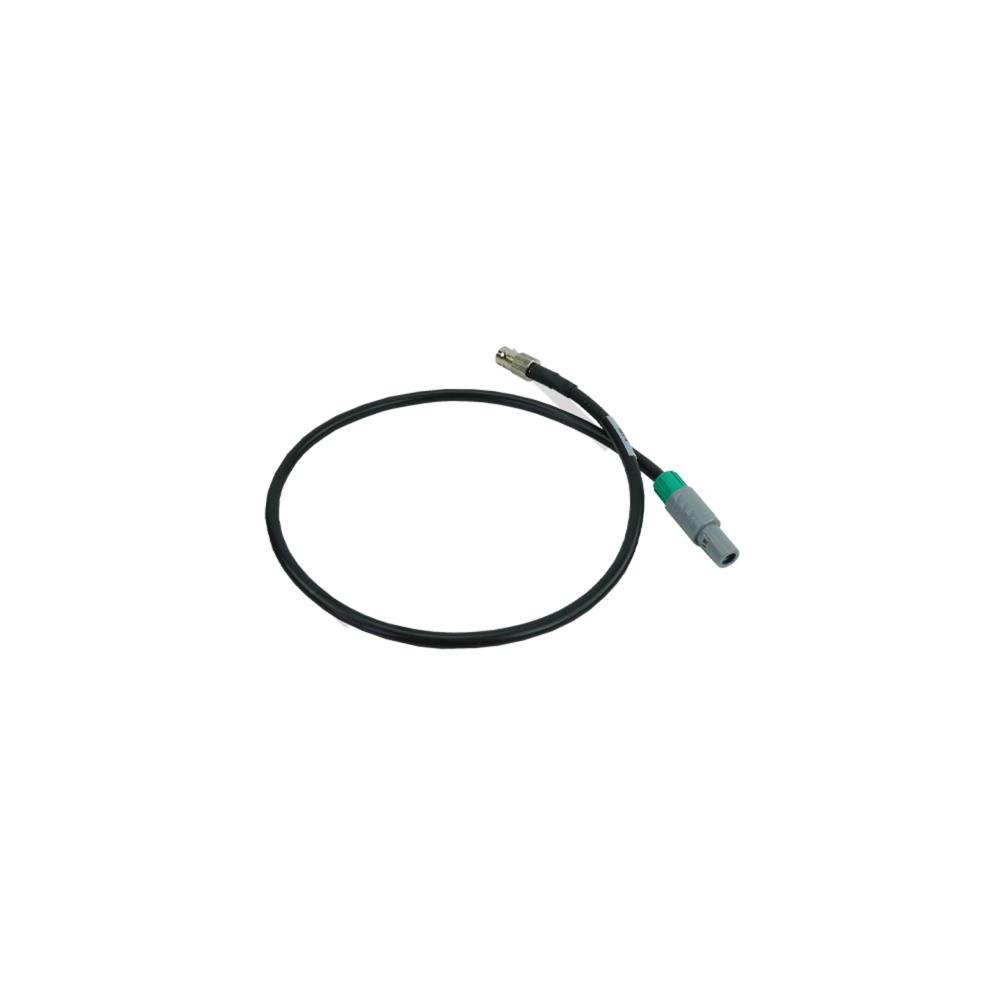

This 600 mm long extension cable assembly is connected in the Vivid I to Mac Lab/Cath Lab systems of GE's Diagnostic ECG Systems. This cable assembly comprises of a 50 Ohms female coaxial connector at one end and a 7 position circular push-pull connector at the other end, connected using 22 AWG, stranded bare copper conductor cable. This connector cable can be operated at up to 1 GHz frequency at a temperature range of +165 to -65 Degree C. The contacts of this cable assembly are of brass with gold plating which offers excellent conductivity, heat protection, enhance durability and the nickel body finish offers exceptional corrosion protection. The cable assembly is properly shielded using bare copper braid shield which provides EMI/RFI shielding and insulated using gas-injected high-density polyethylene (HDPE) foam and polyvinyl jacket to resists electrical leakage and also protects the cable against environmental threats such as water and heat. This cable assembly comes with pre-labeled information about the part number, manufacturer and maufacturing date.

  • Características adicionales

    • Long Service Life
    • Field Replaceable Unit (FRU)
