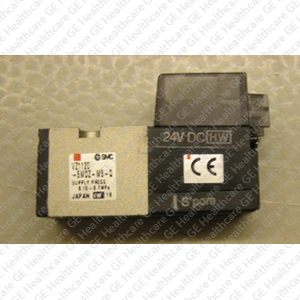

Air Valve VZ1120 801103

2163545
PET Radiopharmacy
PETtrace 800
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • 4 Port Solenoid Valvewith Ported Body
  • 2 Position Single Solenoid Valve
  • Wide Operating Temperature And Pressure Range
  • Quick Response Time

Descripción del producto

This air valve is suitable for use with cylinders up to a bore of 16 mm used in the GE's PET Cyclotrons Radiopharmacy systems. This valve assembly consists of a pilot type 4 port solenoid valve with rubber seal and have two position single actuation system. The outer body of this air valve assembly is made up of Zinc Alloy Castings (ZDC) which offers good dimensional stability, high strength, good electrical and thermal conductivity. This valve requires 24 VDC supply and consumes very low power of 1.8 Watts. This air valve assembly comes with light /surge voltage suppressor to protect he device from voltage spikes. This device is diligently designed to provide a effective performance with wide range of operating temperature and pressure. The effective rubber sealing and dustproof encloser enhance the efficiency of the valve and offers a maximum flow rate of 81 nl/min. The valve assembly can be easily mounted on the system using the non-locking push type mounting system.

  • Características adicionales

    • Low Power Comsumption
    • Reliable Operation
    • RoHS Compliant
