CONNECTOR 25CONTACTS 200 VOLTS 5 AMP RoHS Compliant
2366642-5 | |
2366642-3 46-271920P3 | |
Magnetic Resonance Imaging | |
Brivo 355 | |
GE Sistemas Médicos de México S.A. de C.V | |
GE HealthCare | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Características
- Filtered D-sub Male-Female Adaptor
- Compact and rigid
- Tin plated steel shell
- High current rating
Descripción del producto

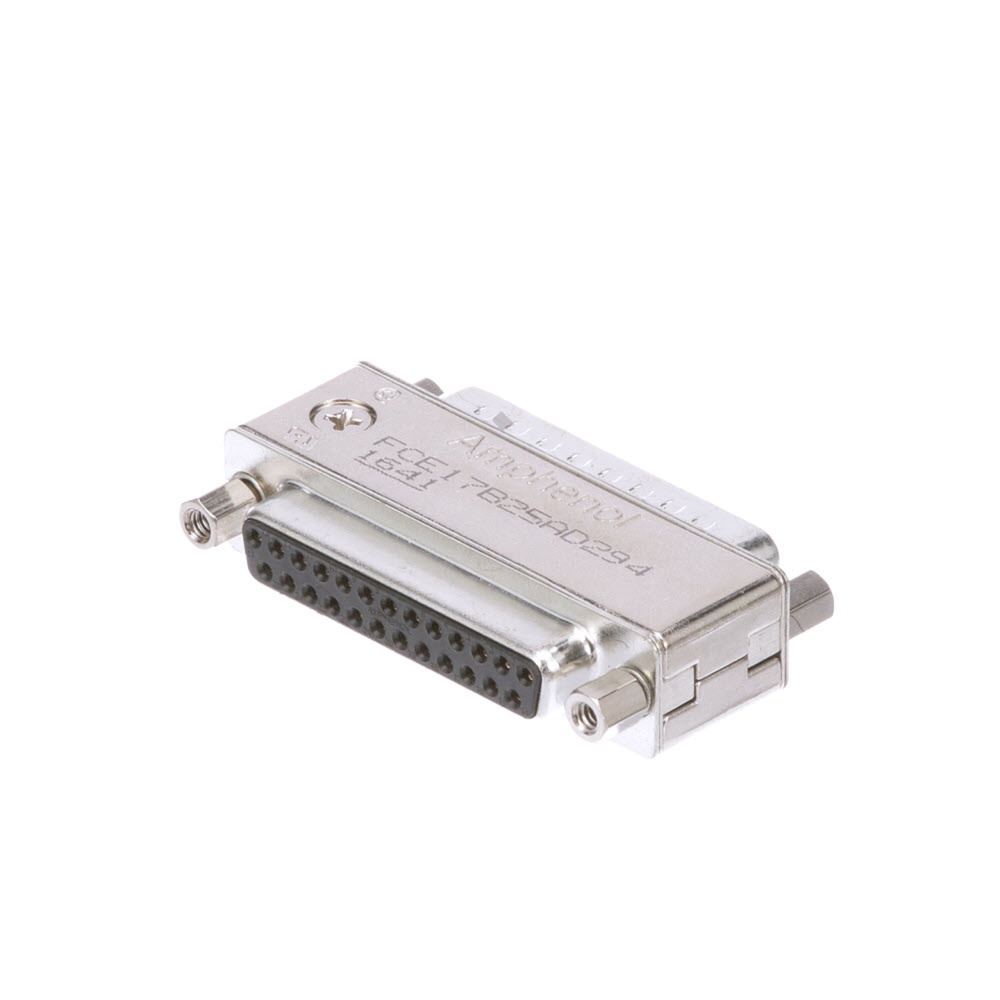

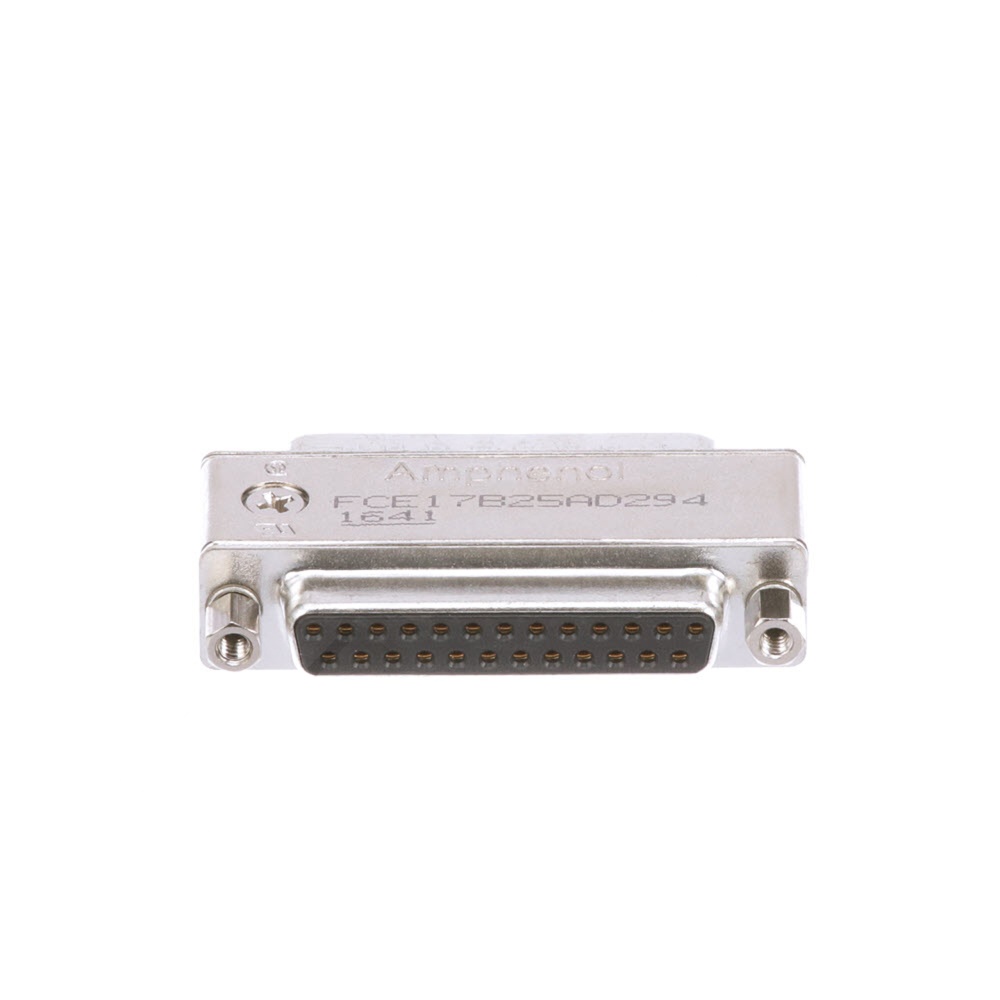

This is 25 positions D-SUB Male-Female Adaptor. It is made up of tin plated steel front shells, thermoplastic glass reinforced housings and Gold plated Phosphor Bronze contacts. The D shaped metal shield helps to reduce electromagnetic interference and enhances signal quality. The design of the connector is compact and rigid. This material offers chemical rigidity to this 25 contacts D-Sub Male-Female adaptor. This Adaptor can be used in a wide temperature ranges, between -40° C and 85° C. This D-SUB type adaptor has 25 pins connector at one side and 25 Socket connector at other side. This connector is being used in many medical machines such as Brivo 355, Discovery 750w 3.0T, Discovery 750w GEM 3.-T, Discovery 750 3.0T,Optima 360 1.5T, Signa Creator 1.5T, Signa Explorer 1.5T and Signa Poineer 3.0T.
Características adicionales
- Operating temperature -40 ° C to 85° C
- Flammability rating UL94V-0
- Gold Plated contacts
- RoHS compliant
Artículo equivalente:
Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente
Artículo equivalente | Detalles de parte |
---|---|
2366642-3 | CONNECTOR 25CONTACTS 200 VOLTS 5 AMP |
46-271920P3 | The Connector 25 Contacts 100V 5A Male-Female Adaptor is use |
