SPDT Snap-Action Switch with Termination Screw
46-136334P49 | |
Magnetic Resonance Imaging | |
Brivo 355 | |
GE Sistemas Médicos de México S.A. de C.V | |
GE HealthCare | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Características
- Highly compatible design
- Self reset type
- IP00 degree of protection
- General purpose switch
Descripción del producto

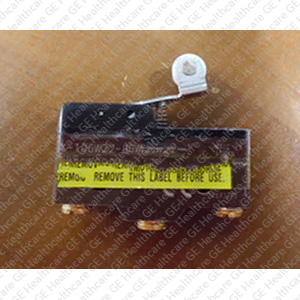

The Single Pole Double Throw (SPDT) Snap-Action Switch, is a compact switch equipped with an enclosed snap-action contact mechanism that makes a specified motion with a specified force to open/close a circuit with an actuator outside the enclosure. It uses the mechanism by which the moving contact quickly moves from one fixed contact to another fixed contact with minimal relation to the speed at which the switch is operated. This switch has a current capacity of 10 Amp and can operate in the temperature range from -25° C to +80° C with no icing or condensation. It has screw type termination style, which uses three M4 x 5.5 terminal screws with toothed washers with panel mounting. This special purpose switch is used in many medical devices such as UL LOGIQ 500, MR Signa HD Excite 1.5T, XM Senographe DMR+, MR Signa Creator 1.5T, UL RT 3200 etc.,
