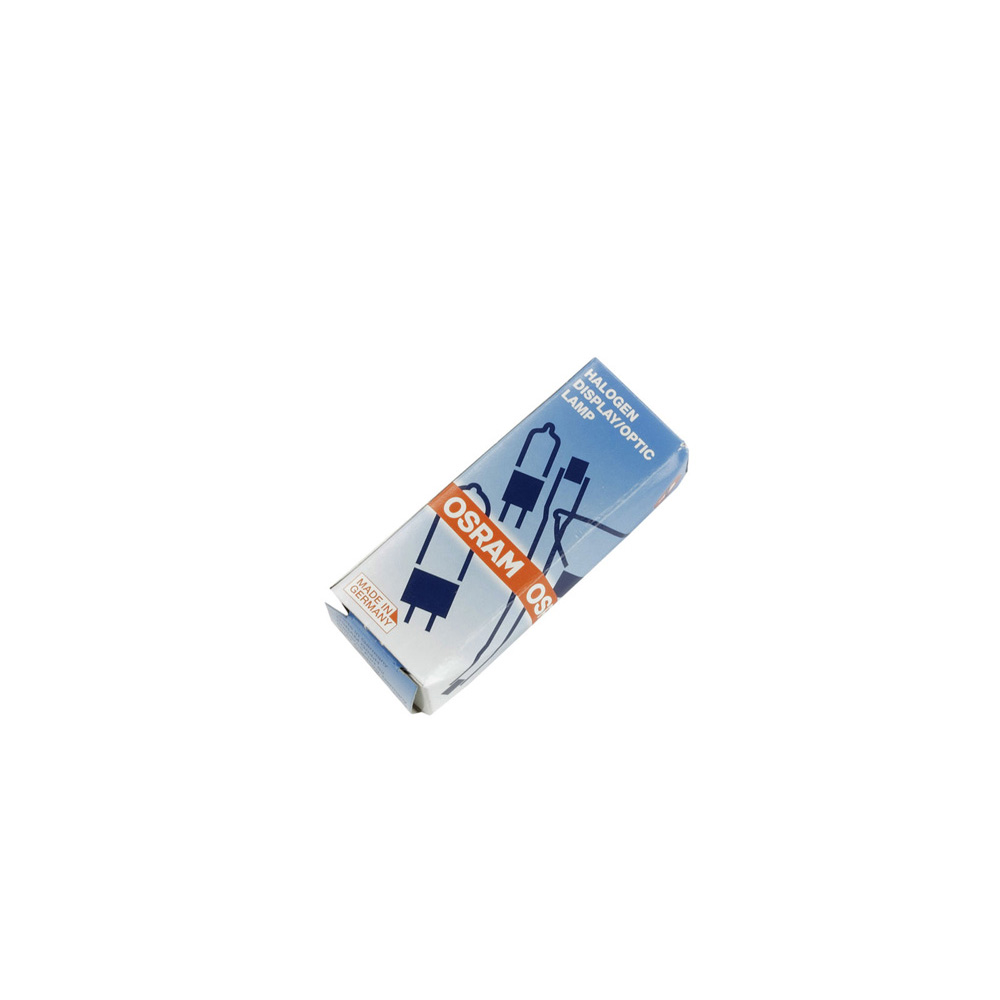

Collimator Lamp (SEDECAL)

5309475
X-Ray
Definium 5000
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Lightweight
  • Very efficient
  • Works especially at low voltages
  • Maximum brightness

Descripción del producto

The Collimator Lamp is used as a spare part system which comes under the modality of X-Ray systems. The Collimator lamp voltage is configured by connecting an electrical jumper to J10 (24 VAC) for the Philips lamp or J11 (26 VAC) for the GE type lamp, when a 230 VAC input line is on XT transformer. We can change the collimator lamp voltage according to the requirements. The RF amplifiers are used in these collimators. A collimated beam of light or other electromagnetic radiation has parallel rays, and therefore will spread minimally as it propagates. A perfectly collimated light beam, with no divergence, would not disperse with distance. Reducing the size of the beam by collimation reduces the volume of the patient's tissue that is irradiated and reduces intensity in the periphery of the beam. Peripheral X-Rays is absorbed by the patient's tissues and can generate scattered photons, which travel in many directions and cause film fog, reducing the quality of the X-Ray image. The GE product is an Innovation and technology which fits well into versatile customer needs. The product is securely packaged inside a high quality packing box to avoid physical damage during transit.

  • Características adicionales

    • Easily portable
    • Enhanced durability
    • Best suited for medical purpose
