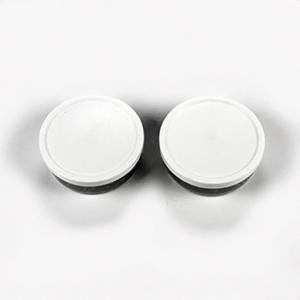

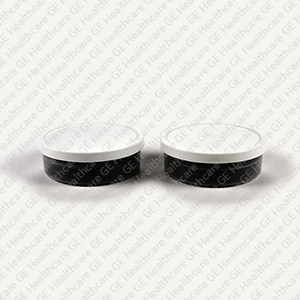

Maintenance Kit for Pt C-11 Hp Target

5316542
PET Radiopharmacy
PETtrace 800
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • One of the best quality sealing agents
  • Most versatile O-ring material makes it suitable for wide range of applications
  • Viton® has excellent resistance to high temperatures
  • Havar® has excellent corrosion resistance and is non-magnetic

Descripción del producto

The Planned maintenance kit for PT C-11 HP target consists of HELICOFLEX® Seal, O-rings, Screw and Foils. The sealing principle of the HELICOFLEX® family of seals is based upon the plastic deformation of a jacket of greater ductility than the flange materials. This occurs between the sealing face of a flange and an elastic core composed of a close-wound helical spring. The spring is selected to have a specific compression resistance. During compression, the resulting specific pressure forces the jacket to yield and fill the flange imperfections while ensuring positive contact with the flange sealing faces. Each coil of the helical spring acts independently and allows the seal to conform to surface irregularities on the flange surface. The O-rings are made up of Viton® which is one of the most versatile and widely used as sealing material. It has excellent resistance to high temperatures and offers excellent compatibility with a range of chemicals and oils. The foil is made up of Havar®, is an alloy of cobalt possess very high mechanical strength at high temperatures.
