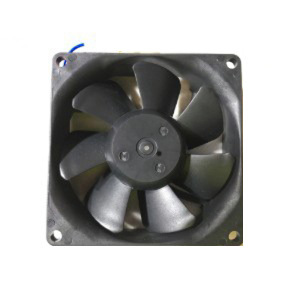

Fan Cool with Connector 12 Volts 35 CFM

6600-0601-700
Cuidado materno-infantil
Overhead Phototherapy
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • High quality main axial DC fan assembly
  • Voltage rating 12V DC
  • Locked rotor and polarity protection
  • Lightweight

Descripción del producto

The Fan Cool with Connector 12 Volts 35 CFM is a specially designed part used in the cooling systems of the phototherapy system that is intended for use in Giraffe® Spot PT Lite™ phototherapy systems and other medical applications as necessary. The fan assembly is used to cool the bulb in the phototherapy system. The assembly includes a 12V axial fan, Mate-n-lok plug connector and 22-26 AWG terminal. Due to the minimum blade size of 3.2 inch x 3.2 inch, the fan has an extended lifetime of 60000 hours at 20° C. The product is made of a high quality plastic material and is approved by safety standards which makes it very well suited for many medical applications. The product is a proven design which fits well in to demanding applications.

  • Características adicionales

    • Low noise
    • Excellent quality ball bearing for smooth rotation
    • Expected life 60000 hours at 20° C
    • Operating temperature ranges from -20° C to 70° C
    • Complies with UL and CSA safety standards
    • Flammability rating UL94V-0
    • RoHS compliant
