Spring Free Length 0.875" Rate - lbs/in 28.0

46-136353P18
X-Ray
RFX/SFX
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Good Surface Hardness
  • Good Compression And Resilience Properties
  • Highly Reliable
  • Good Corrossion Resistance

Descripción del producto

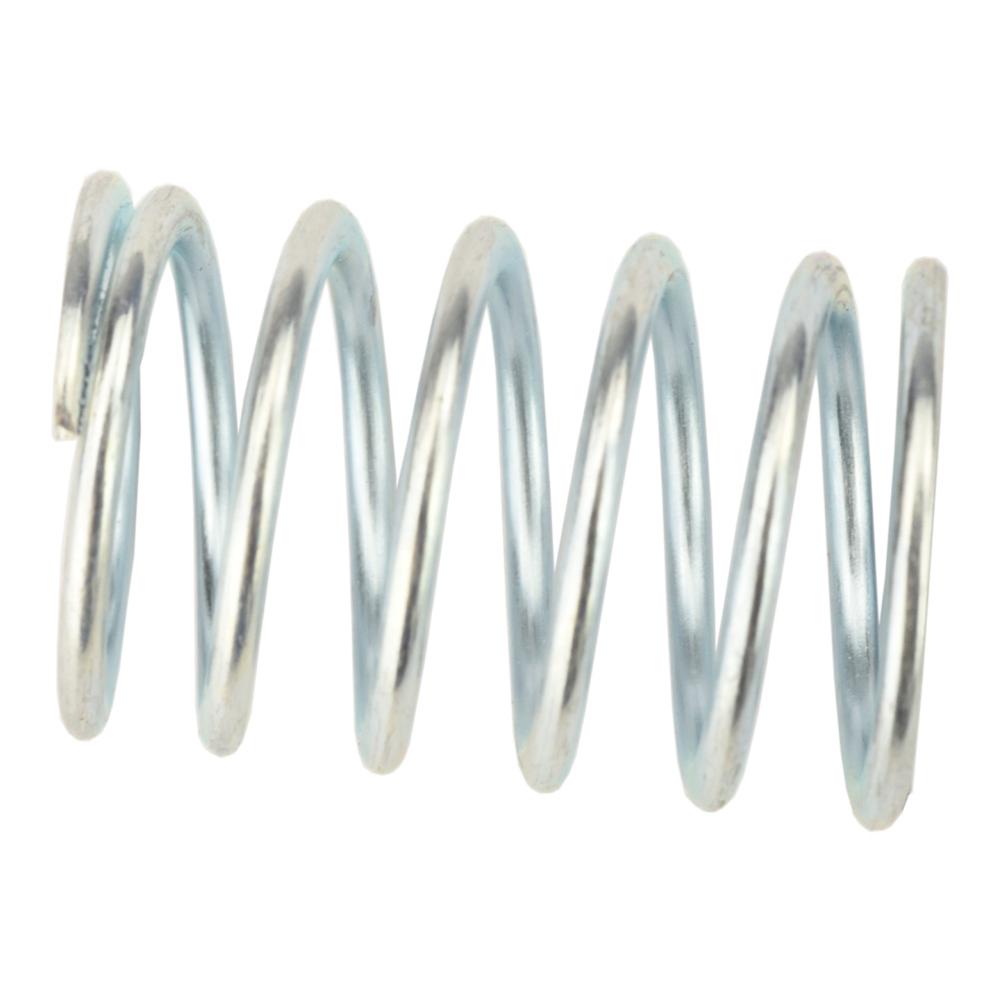

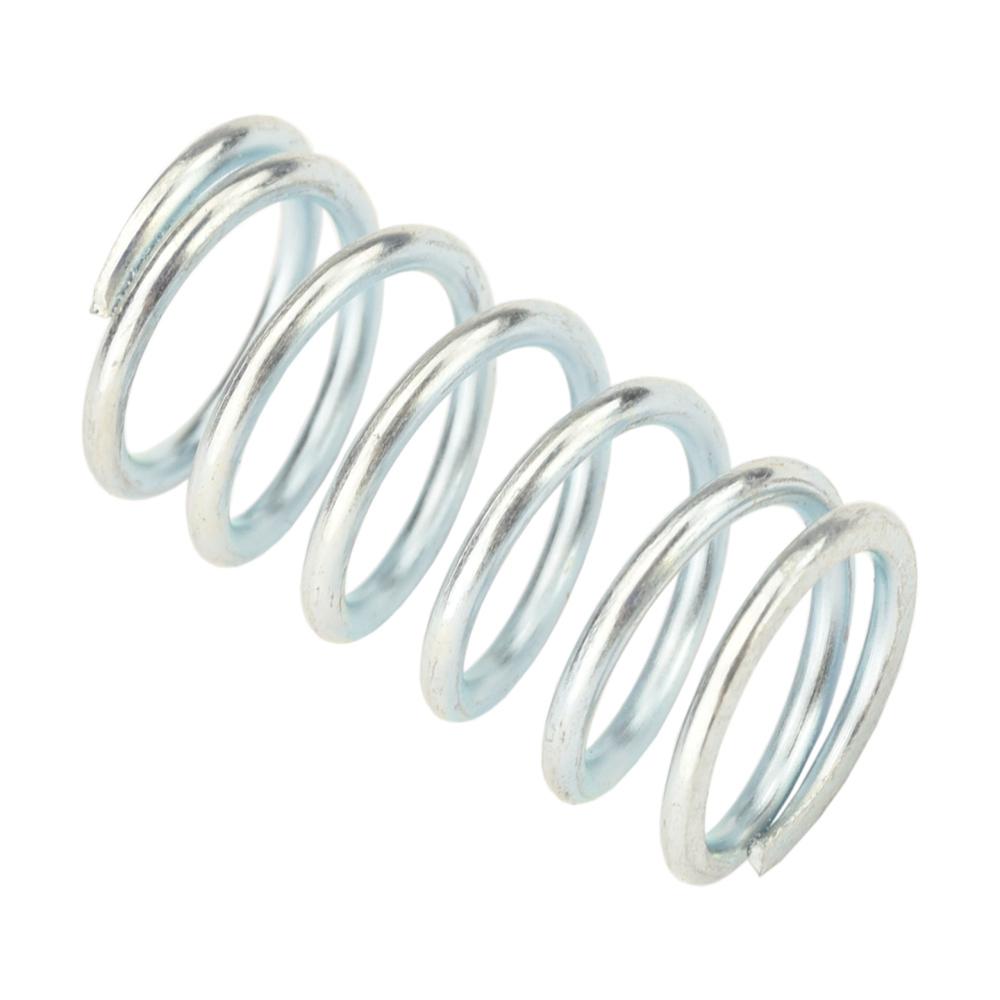

Compression springs are devices made up of helically formed coils with pitch in-between used to push back on an applied force or load in order to return to its original position when the force or load is released. They are the most commonly used type of spring as well as the most economical. This compression spring is made up of ASTM 5112 music wire of 0.047 inch diameter. The 0.875 inch long spring comes with squared and grounded ends. The cadmium plating over the music wire enhances the exterior finish and also provides good corrossion resistance properties, which in turn leads to increased service life of the product. This Compression Spring provides a spring rate of 28 lb/in and is compatible for use in the assemblies of GE's Precision 500D X-Ray systems.

  • Características adicionales

    • Good Dimensional Stability
    • High Strength
