Front Sensor Kit for Spot Film Device

46-316202G3
46-316202G1 46-316202G2
X-Ray
AMX4/AMX4+
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • High Quality IR Emitter and Detector Phototransistors
  • Reliable Performance
  • Compact PCB Layout
  • Good Dimensional Stability

Descripción del producto

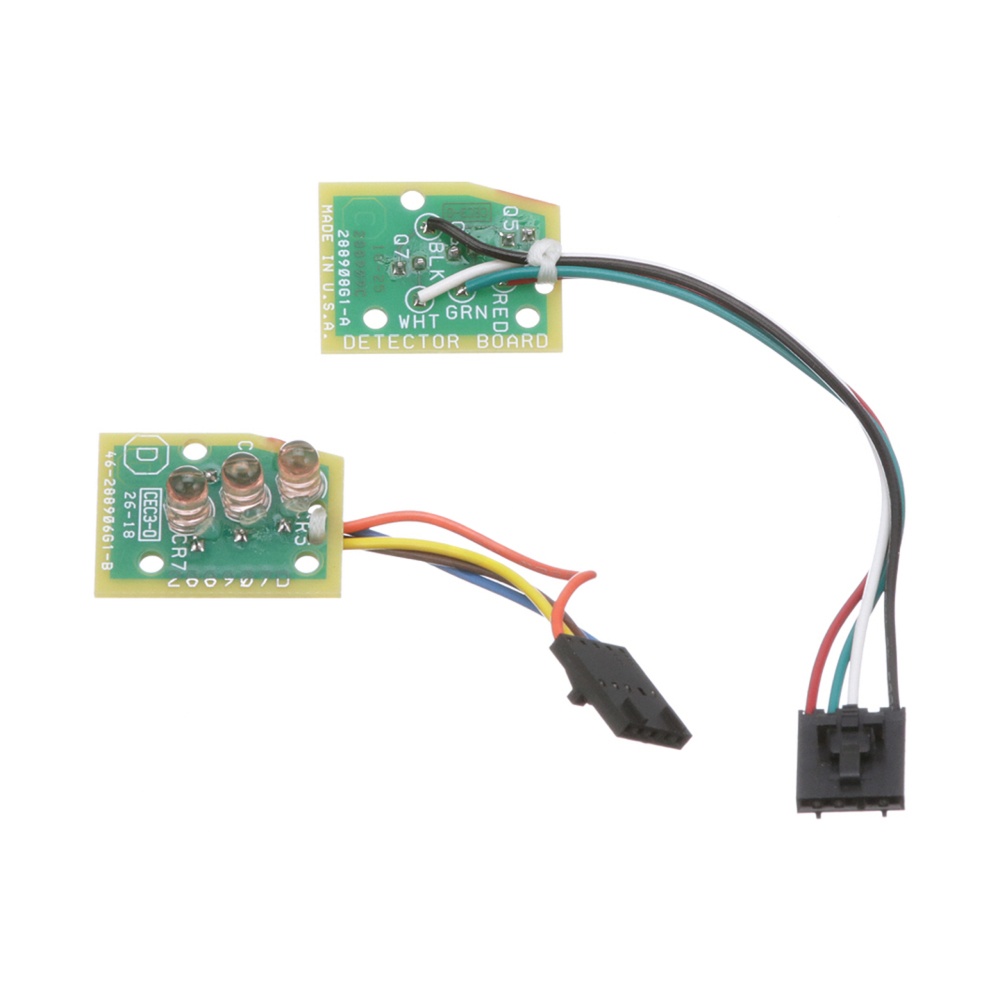

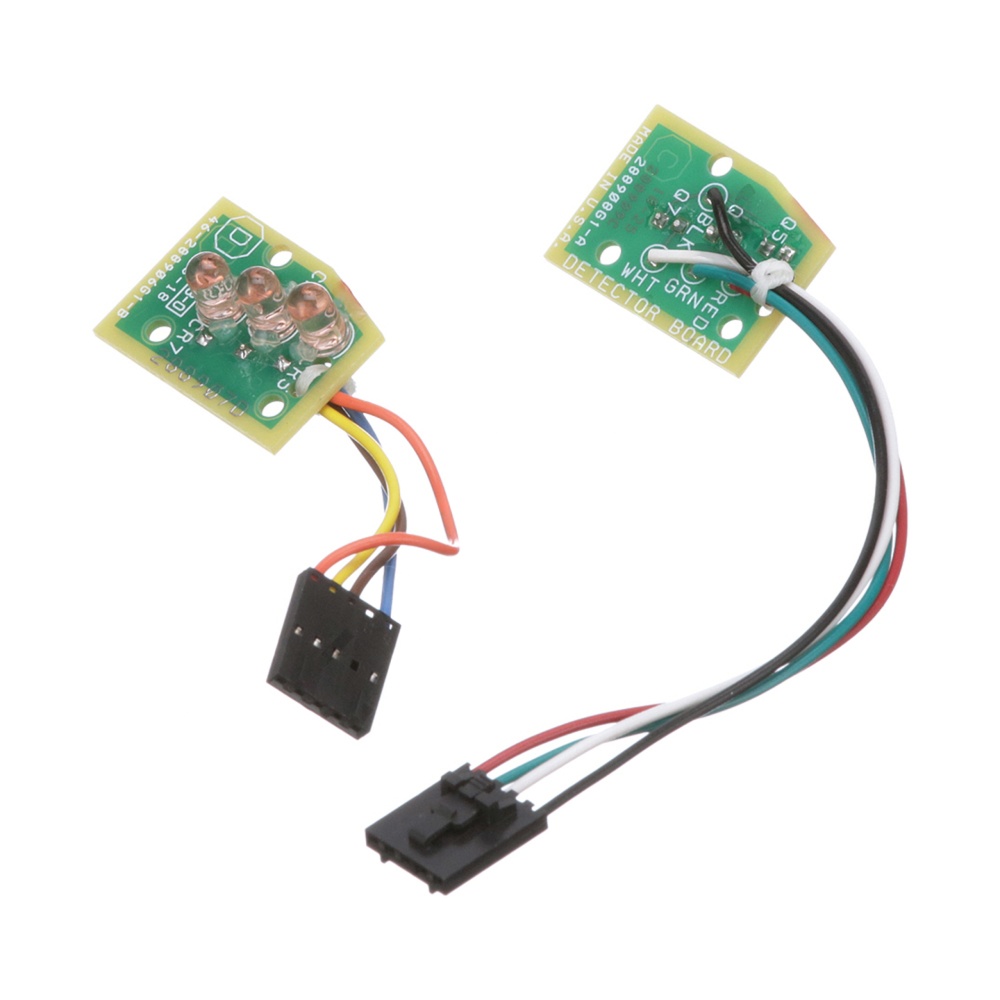

An infrared sensor detects if the cassettes or human hands are in the loading area of the machine. This sensor consists of 3x infrared emitting diodes mounted on a board and 3x infrared detecting transistors mounted on another board. The emitting diode is aimed at the detecting transistors and, if nothing is blocking the infrared beam, the transistor will saturate. The devices used on the boards have a very small half angle. The printed circuit boards of the emitter and detector come with 3 drilled holes for mounting on the assembly. The detector and emitter module come with 5 position connectors. The assembly is compatible with GE's 8835 Spot Film Device (SFD) systems.

  • Características adicionales

    • 3 Mounting Holes on Each Board
    • Easy to Connect 5 Position Connectors

    Artículo equivalente:

    Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente

    Artículo equivalenteDetalles de parte
    46-316202G1 CONSISTS OF (1) EMITTER BOARD
    46-316202G2 FNT SENSORS (EMITTER AND COLLECTOR)
